Networking

Overview

Remote Access

~/remote-access● LIVE

$docker compose restart

Restarting minepanel-frontend ... done

Restarting minepanel-backend ... done

Minepanel is now available at your LAN IP

Update docker-compose.yml:

environment:
  - FRONTEND_URL=http://your-ip:3000
  - NEXT_PUBLIC_BACKEND_URL=http://your-ip:8091

docker compose restart

Network Settings (UI)

Configure IPs in Settings → Network Settings:

Setting	Use
Public IP / Domain	Discord notifications, external players
LAN IP	Local network players

Find your LAN IP:

# Mac
ipconfig getifaddr en0

# Linux
hostname -I | awk '{print $1}'

# Windows
(Get-NetIPAddress -AddressFamily IPv4 -InterfaceAlias "Ethernet").IPAddress

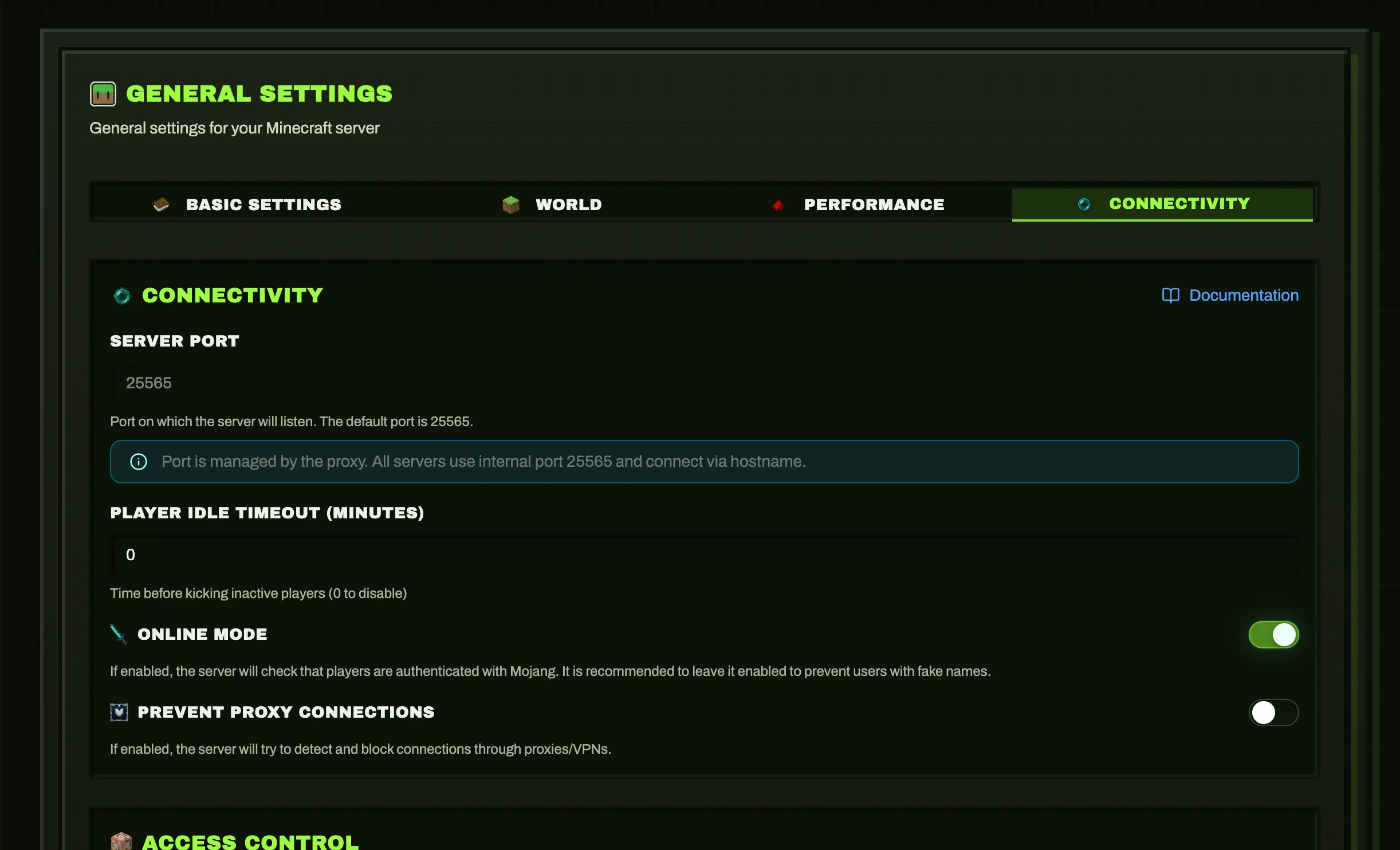

Connectivity Tab (per server)

Minepanel server configuration includes General -> Connectivity.

Key fields:

Field	What it affects
serverPort	Published game port (25565 Java, 19132 Bedrock by default)
onlineMode	Mojang auth verification for Java servers
preventProxyConnections	Blocks bypass connections when using Java proxy routing
ops	Operator usernames
opPermissionLevel	Java op permission level (1-4)

Notes:

• If Java proxy is enabled globally, port mapping may be controlled by proxy mode.
• Bedrock uses UDP and does not use Java proxy routing.

Ports

Service	Default	Protocol	Description
Frontend	3000	TCP	Web UI
Backend	8091	TCP	API
Java Servers	25565+	TCP	Java Edition games
Bedrock Servers	19132+	UDP	Bedrock Edition games

Bedrock UDP

Bedrock uses UDP, not TCP. Make sure your firewall rules specify the correct protocol.

Open firewall:

# Minepanel
sudo ufw allow 3000/tcp
sudo ufw allow 8091/tcp

# Java servers
sudo ufw allow 25565/tcp

# Bedrock servers
sudo ufw allow 19132/udp

SSL/HTTPS

User

Proxy / SSL

Frontend :3000

Backend :8091

Nginx + Let's Encrypt

# /etc/nginx/sites-available/minepanel
server {
    listen 80;
    server_name minepanel.yourdomain.com;

    location / {
        proxy_pass http://localhost:3000;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_set_header Host $host;
    }
}

sudo certbot --nginx -d minepanel.yourdomain.com

Update environment:

- FRONTEND_URL=https://minepanel.yourdomain.com
- NEXT_PUBLIC_BACKEND_URL=https://api.yourdomain.com

Caddy (Auto SSL)

minepanel.yourdomain.com {
    reverse_proxy localhost:3000
}

api.yourdomain.com {
    reverse_proxy localhost:8091
}

MC Proxy Router (Java Only)

Single port (25565) for all Java servers via hostname routing.

Java Edition Only

mc-router only works with Java Edition (TCP protocol). Bedrock servers use UDP and cannot be proxied this way. Each Bedrock server needs its own port.

Setup

1. DNS: Create wildcard record *.mc.example.com → your-ip

2. Settings: Configure base domain in Settings → Proxy Settings

3. Start mc-router:

docker compose --profile proxy up -d

Java servers auto-get hostnames: {server-id}.mc.example.com

Bedrock Connection

Bedrock servers connect directly via IP and port:

Server Address: your-ip
Port: 19132 (or assigned port)

Troubleshooting

Issue	Fix
CORS errors	FRONTEND_URL must match browser URL exactly
Can't access remotely	Check firewall, update FRONTEND_URL
Connection refused	docker ps to check containers running

→ More: Troubleshooting
